2-Roll Plate Bending Machine

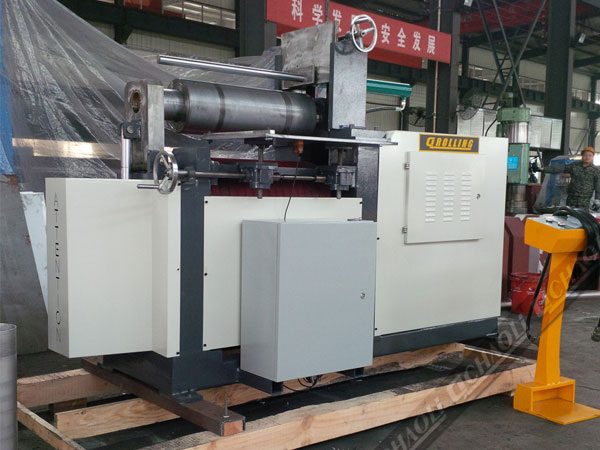

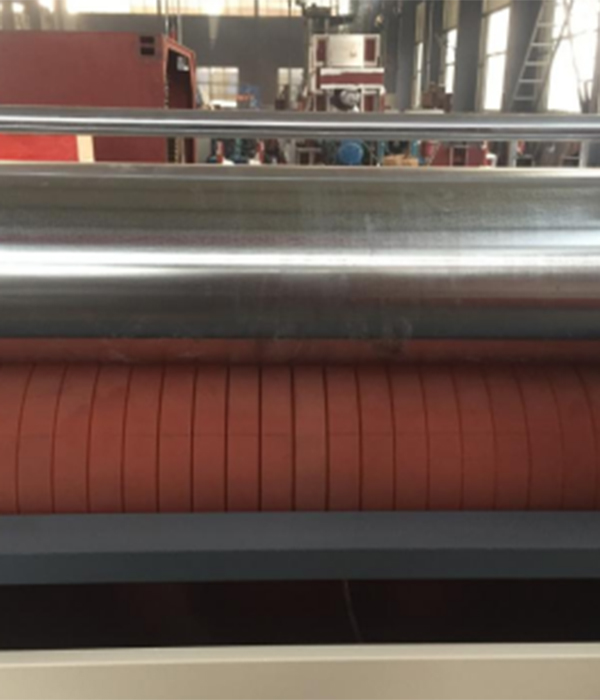

As a new type of rolling machines, 2 roll plate bending machine is equipped with 2 rollers, one is made from steel and the other one is comprised of a steel core covered by an elastic layer (rubber roll). The plate is arranged between the 2 rolls with an adjustable distance. With the processes of contacting - pressing - rubber roll deforming, the plate is deformed partially thus driving both the 2 rolls to rotate. Then a continuous rolling and forming process will be realized. This roll bending machine is of high production efficiency and lightweight structure, and is able to form the plates into one piece. The plates it processes are highly valued for high geometric accuracy and smooth plate surface. The adoption of PLC (programmable logic controller) for the sheet metal bending equipment allows for an easy operation and numerical control.
| Model | Yielding limit of sheet metal (Mpa) | Max. rolling thickness (mm) | Max. rolling width (mm) | Rolling speed (m/min) | Power of electric motor (kW) | Power of hydraulic motor (kW) |
| 245 | 1 | 300 | 4.5 | 0.37 | 2.2 | |
| 245 | 2 | 400 | 4.5 | 0.37 | 2.2 | |
| 245 | 2 | 600 | 4.5 | 0.55 | 2.2 | |
| 245 | 3 | 700 | 4.5 | 0.75 | 3 | |
| 245 | 3 | 800 | 4.5 | 0.75 | 3 | |
| 245 | 3 | 1000 | 4.5 | 1.1 | 3 | |
| 245 | 3 | 1250 | 4.5 | 1.1 | 3 | |
| 245 | 4 | 1300 | 4.5 | 1.1 | 3 | |
| 245 | 4 | 1500 | 4 | 1.5 | 3 | |
| 245 | 3 | 1800 | 4 | 1.5 | 3 | |
| 245 | 3 | 2000 | 4 | 1.5 | 3 |
- Its rubber rollers are of 3-year warranty
- Digital display is adopted for the bending machine
- Heavy duty steel welded frame with no stress

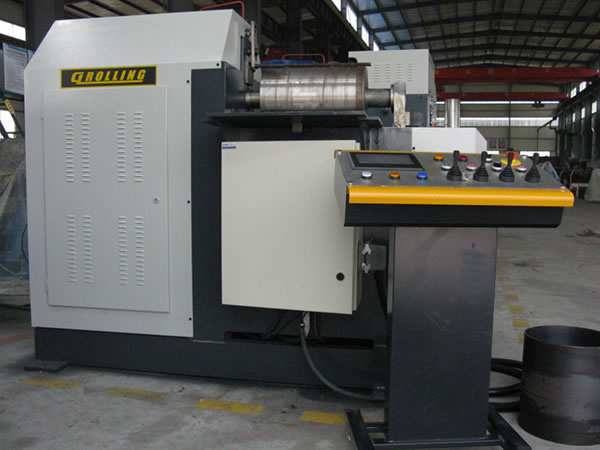

- All of the operations are controlled by an independent control console

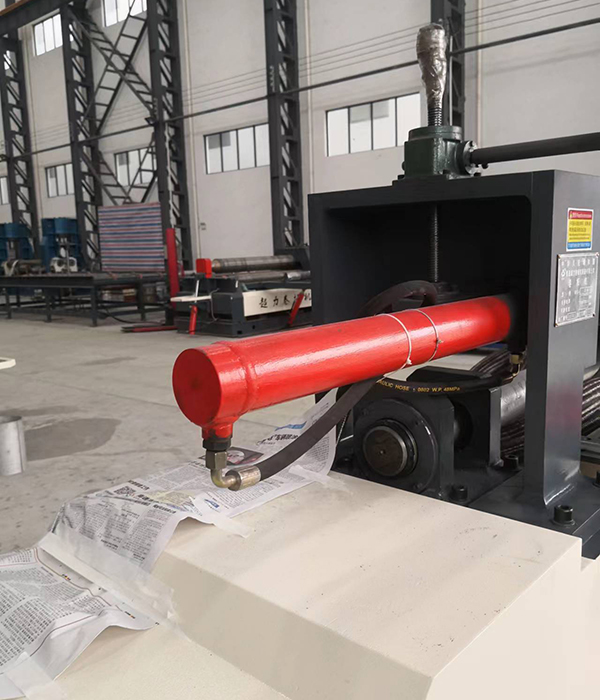

- Hydraulic drop end is employed for the convenience of removing cylinder
- Automatic leveling rubber rolls system
- Automatic discharging device
- Automatic production line
- Acid-proof rubber rolls are utilized

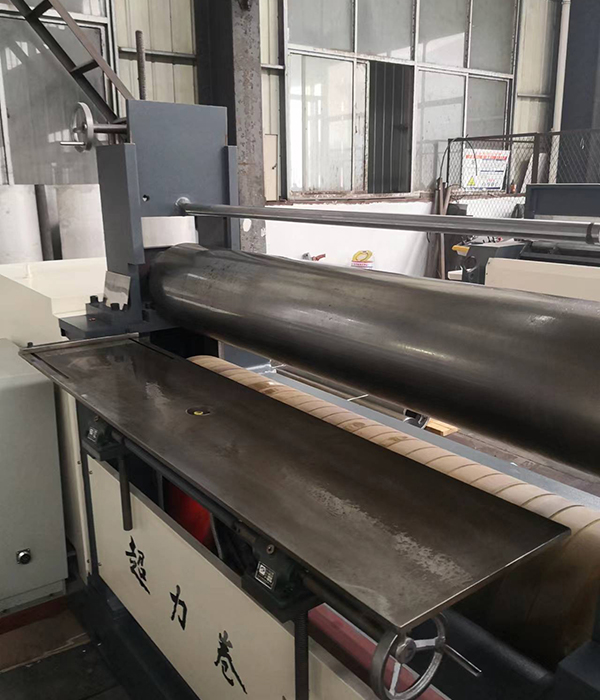

- Automatic material feeding table
- Portable keyboard
- Oil cooling system

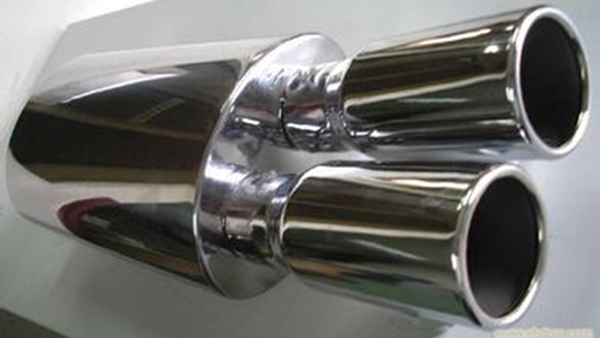

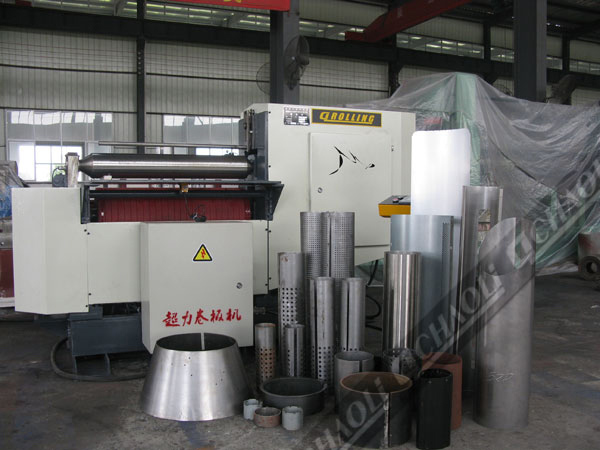

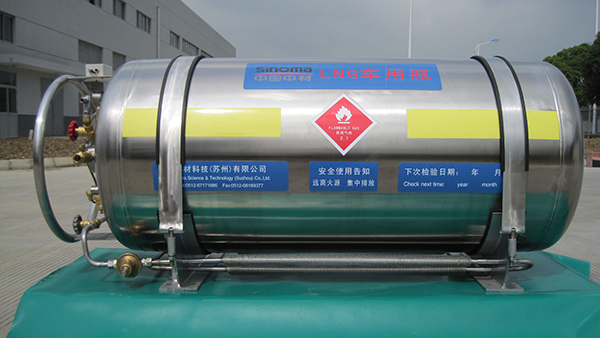

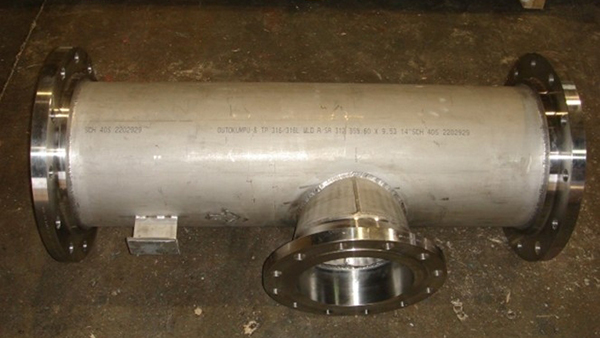

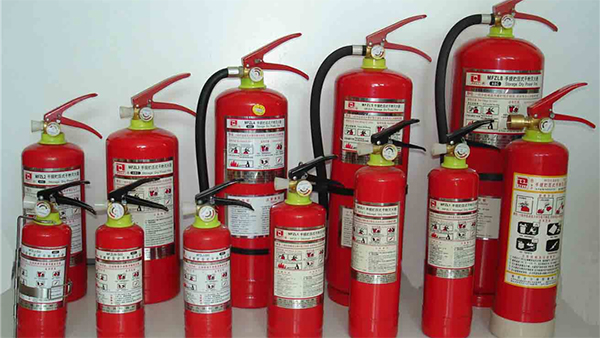

This plate bending machine is applicable in submersible pump, stainless steel body cover, silencer, exhaust pipe, catalytic converters, small water heater, chimney flues, small LPG, CNG & cylinders, fire extinguishers, etc.
-

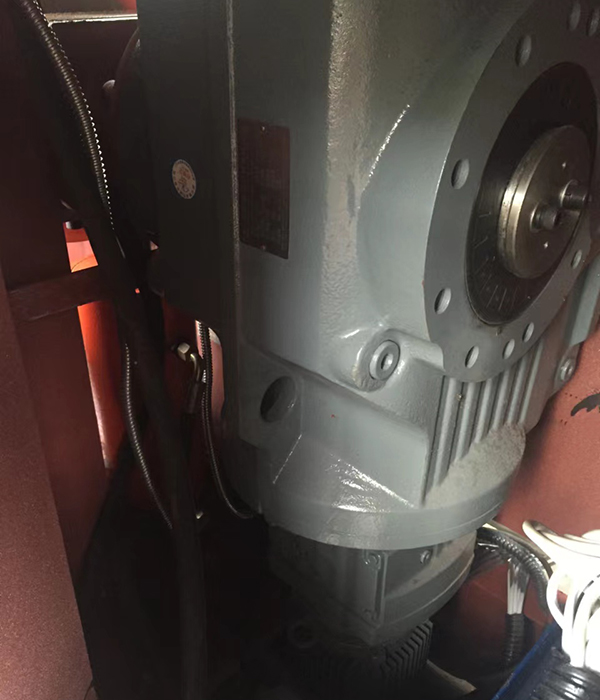

- Optimized for energy saving, our plate bending machines integrate high ratio reduction gearbox with low-power motor, delivering powerful performance
-

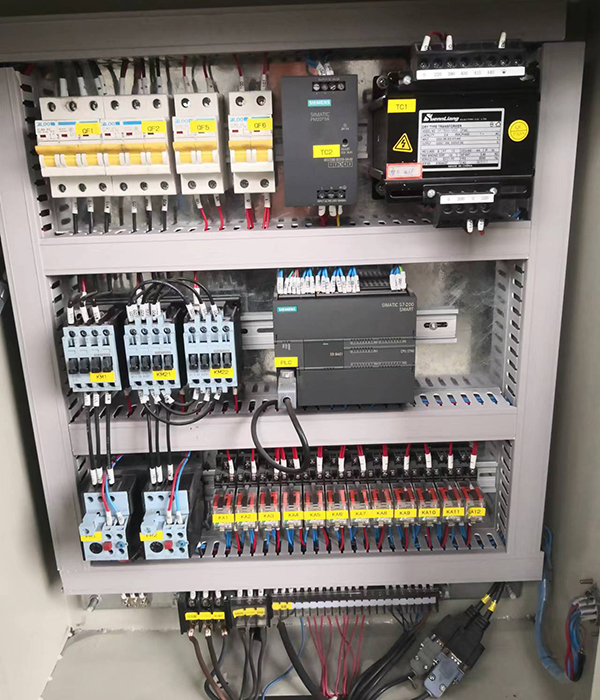

- Equipped with Siemens PLC and touchscreen technology for customizable and intuitive plate rolling operations
-
- Features an advanced material push system for efficient retrieval, enhancing the plate rolling process and cutting down on time
-
- Designed with a specialized support system to assist with large cylinders, ensuring enhanced accuracy in roundness
-

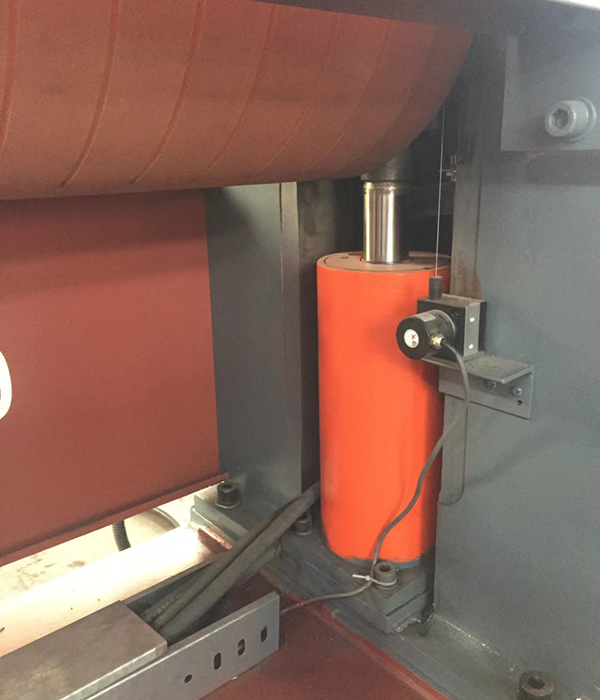

- Incorporates precision roller shaft positioning and an auto-leveling feature to ensure balance and uniformity
-
- Equipped with a hydraulic tilting mechanism, significantly reducing manual effort and boosting operational efficiency
-
- Fitted with an adjustable feeding platform, making material handling smoother and more convenient
-
- Utilizes high-quality German-engineered polyurethane rollers known for their superior elasticity and durability
