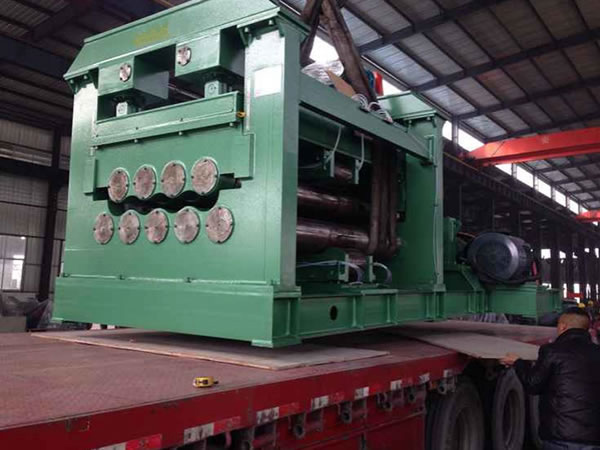

Sheet Metal Levelling Machine

Plate flattening machine is specially used for flattening or levelling sheet metal. It is able to flatten single sheet independently. To form a complete production line, decoiling and plate receiving structure is arranged in front of the equipment, and shearing, stacking and coupling parts can be set behind. Accompanied with a control system, the metal coil will be well flattened and cut.

Chaoli plate levelling machine adopts several rollers to repeatedly make the sheet placed between the upper and lower flattening rollers deformed to eliminate the stress and therefore flatten the plates. Sheet metal levelling machine is a commonly-used device for sheet metal processing. The types of flattening machine mainly depend on plate thickness and the material of sheet to be flattened. This machine can obviously improve the flatness of metal sheet and therefore its quality. Its structure shall be more compact with less rollers, larger roll diameter and larger power (width unchanged) for processing thicker sheet, vise versa. Carrier rolls (pulleys) are arranged outside of the upper and lower rolls to form a roll group structure. The metal plate leveller is generally comprised of a driving part, a motor and an electric control unit.

Technical parameters of the leveling machine

1800mm Sheet Metal Levelling Machine
Specification Max plate width (mm) Max leveling plate thickness (mm) Min plate thickness (mm) Yield strength of plate (MPa) Quantity of working rollers (n) Levelling speeding (n/min) Power of main motor (kw)
30x1800 1800 30 8 ≤245 9 7 2x90
2000mm Sheet Metal Levelling Machine
Specification Max plate width (mm) Max leveling plate thickness (mm) Min plate thickness (mm) Yield strength of plate (MPa) Quantity of working rollers (n) Levelling speeding (n/min) Power of main motor (kw)
16x2000 2000 16 6 ≤245 9 7 2x45
20x2000 2000 20 6 ≤245 9 7 2x55
25x2000 2000 25 6 ≤245 7 9 2x75
40x2000 2000 40 12 ≤245 7 6.5 2x110
2200mm Sheet Metal Levelling Machine
Specification Max plate width (mm) Max leveling plate thickness (mm) Min plate thickness (mm) Yield strength of plate (MPa) Quantity of working rollers (n) Levelling speeding (n/min) Power of main motor (kw)
100x2200 2200 100 30 ≤235 7 5 2x200
2500mm Sheet Metal Levelling Machine
Specification Max plate width (mm) Max leveling plate thickness (mm) Min plate thickness (mm) Yield strength of plate (MPa) Quantity of working rollers (n) Levelling speeding (n/min) Power of main motor (kw)
20x2500 2500 20 5 ≤245 7 9 2x75
25x2500 2500 25 6 ≤245 7 9 2x90
30x2500 2500 30 8 ≤245 7 6.5 2x110
40x2500 2500 40 12 ≤245 7 6.5 2x132
50x2500 2500 50 12 ≤235 7 5 2x185
3000mm Sheet Metal Levelling Machine
Specification Max plate width (mm) Max leveling plate thickness (mm) Min plate thickness (mm) Yield strength of plate (MPa) Quantity of working rollers (n) Levelling speeding (n/min) Power of main motor (kw)
40x3000 3000 40 12 ≤245 7 5 2x185
60x3000 3000 60 12 ≤235 7 5 2x185
100x3000 3000 100 30 ≤235 7 5 2x280
3500mm Sheet Metal Levelling Machine
Specification Max plate width (mm) Max leveling plate thickness (mm) Min plate thickness (mm) Yield strength of plate (MPa) Quantity of working rollers (n) Levelling speeding (n/min) Power of main motor (kw)
50x3500 3500 50 12 ≤235 7 5 2x185
4000mm Sheet Metal Levelling Machine
Specification Max plate width (mm) Max leveling plate thickness (mm) Min plate thickness (mm) Yield strength of plate (MPa) Quantity of working rollers (n) Levelling speeding (n/min) Power of main motor (kw)
40x4000 4000 40 12 ≤245 9 5 2x185
