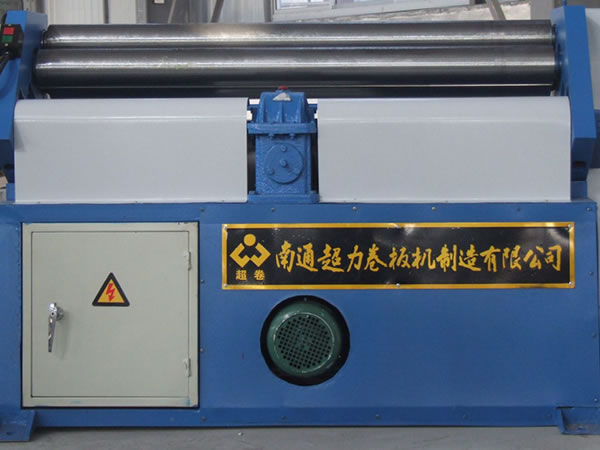

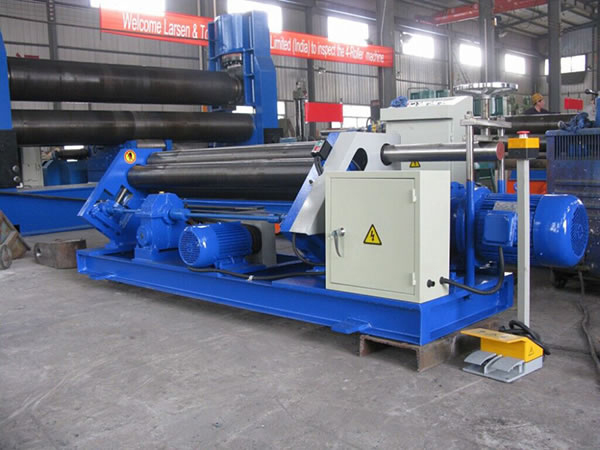

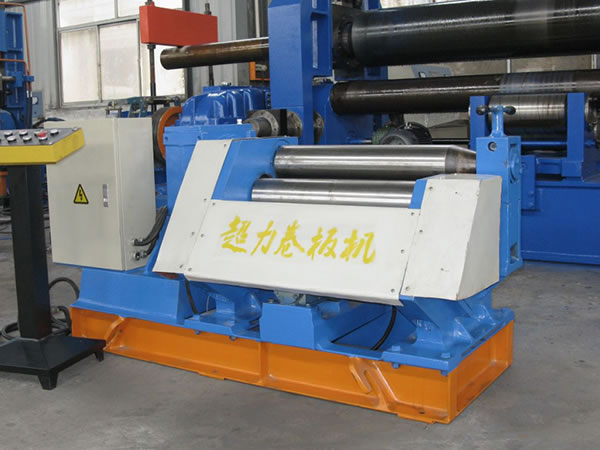

1000mm~2000mm 3-Roll Plate Rolling and Bending Machine

3 roll mechanical asymmetrical plate bending machine is characterized by its 3 asymmetrically-arranged working rolls (an upper roll, a lower roll and a side roll). During operation, the plate is arranged between the upper and lower rolls and clamped tightly as the lower roll moves vertically. The upper and lower rolls are driving parts and rotate in opposite directions, while the side roll is a driven part and can obliquely move up and down along the surface which demonstrates a certain angle to the vertical surface formed by the axial line of the upper and lower rolls, so as to roll the plate with a required curvature radius. The asymmetric 3-roll rolling machine is outstanding for compact structure, easy operation and maintenance, and the capabilities of pre-bending and circle rolling.

1000mm 3 Roll Plate Bending Machine
Model Yield strength of sheet metal (Mpa) Max rolling thickness (mm) Max rolling width (mm) Rolling speed (m/min) Diameter of upper roller (mm) Power of main motor (kw)
W11F-2x1000 245 2 1000 5 100 2.2
W11F-4x1000 245 4 1000 4.5 125 3
W11F-6x1000 245 6 1000 4.5 145 3
1200mm 3 Roll Plate Bending Machine
Model Yield strength of sheet metal (Mpa) Max rolling thickness (mm) Max rolling width (mm) Rolling speed (m/min) Diameter of upper roller (mm) Power of main motor (kw)
W11F-2x1200 245 2 1200 5 105 2.2
W11F-4x1200 245 4 1200 4.5 130 3
1500mm 3 Roll Plate Bending Machine
Model Yield strength of sheet metal (Mpa) Max rolling thickness (mm) Max rolling width (mm) Rolling speed (m/min) Diameter of upper roller (mm) Power of main motor (kw)
W11F-2x1500 245 2 1500 5 108 2.2
W11F-6x1500 245 6 1500 4.5 150 4
2000mm 3 Roll Plate Bending Machine
Model Yield strength of sheet metal (Mpa) Max rolling thickness (mm) Max rolling width (mm) Rolling speed (m/min) Diameter of upper roller (mm) Power of main motor (kw)
W11F-2x2000 245 2 2000 5 115 2.2
W11F-4x2000 245 4 2000 4.5 140 3
W11F-6x2000 245 6 2000 4.5 160 4

Features of standard plate bending machine
• We adopt electric foot switches for the drive rolls of the bending machine
• Emergency stop mechanism is valued
• Steel welded frame without stress
• High tensile carbon rolls
• Limit switches are equipped for the 3-roll plate bending machine

Features of optional equipment
• Round bar rolling (grooves)
• Self braking motor
• Movable operation panel
• Polished chrome rolls
