1500mm~3000mm 3-Roll Plate Rolling and Bending Machine

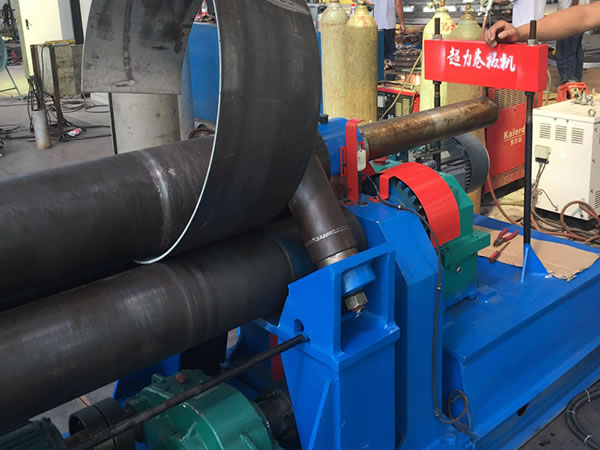

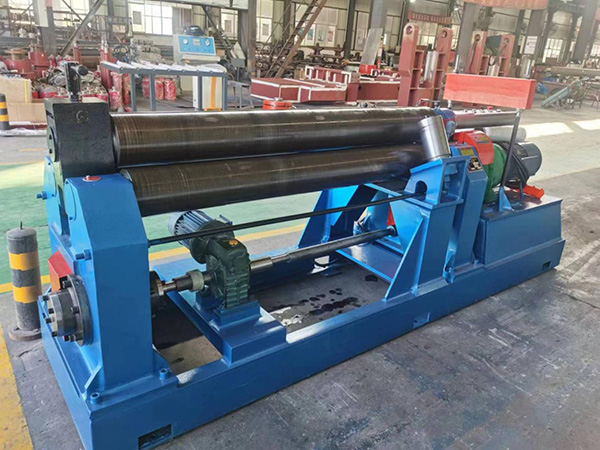

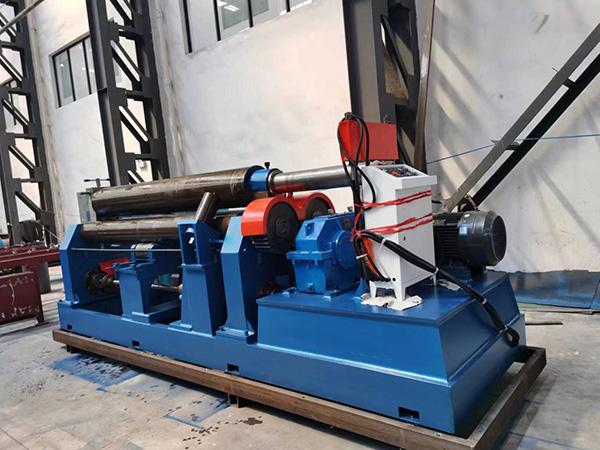

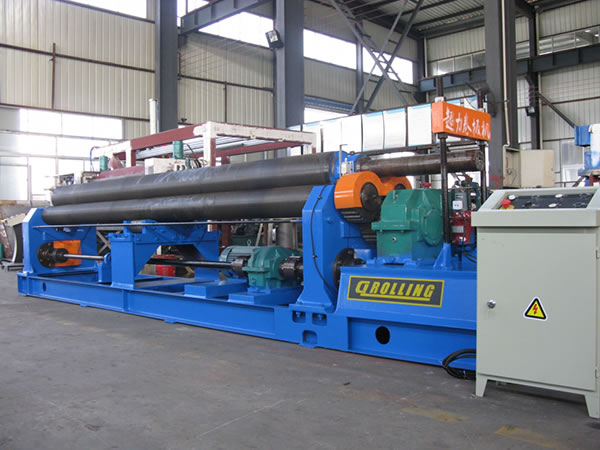

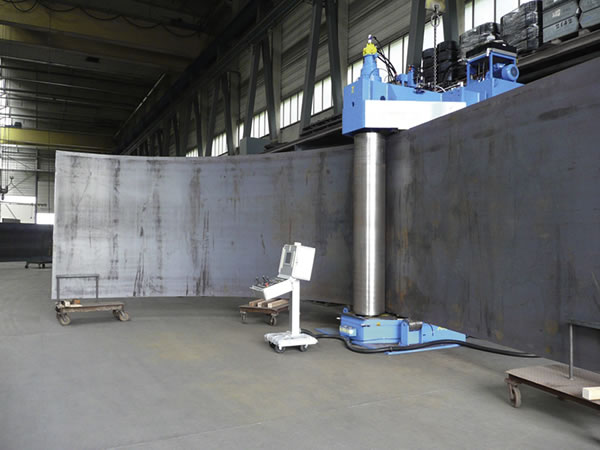

The 3-roll mechanical symmetrical plate bending machine has 3 symmetrically-arranged rolls and the upper roller is located at center of two lower rolls. A worm and gear drive and a screw rod and screw auxiliary drive are used to drive the upper roll to move vertically. The gear mounted on main speed reducer is utilized to mesh the gears of the 2 lower rollers for rotary motion so as to provide torque for the plates. A permanent plastic deformation will be realized upon the metal plates placed between the 3 rollers after a series of continuous bending operations, so the plates will then be formed into cylinders, cones, arcs, or any other shapes we want. While this kind of 3-roll bending machine also has some inadequacies: it is difficult to conduct pre-bending operation upon the plate ends.

Parameters of 3 roll mechanical plate bending machinery

1500 mm 3 Roll Plate Bending Machine
Model Max rolling thickness (mm) Max rolling width (mm) Yield strength of sheet metal (MPa) Rolling speed (m/min) Diameter of upper roller (mm) Power of the main motor (kw)
4x1500 4 1500 245 5 150 3
6x1500 6 1500 245 5 160 4
2000 mm 3 Roll Plate Bending Machine
Model Max rolling thickness (mm) Max rolling width (mm) Yield strength of sheet metal (MPa) Rolling speed (m/min) Diameter of upper roller (mm) Power of the main motor (kw)
6x2000 6 2000 245 4.5 170 5.5
8x2000 8 2000 245 4.5 185 5.5
12x2000 12 2000 245 4.5 240 7.5
20x2000 20 2000 245 4 280 15
16x2000 16 2000 245 4 260 11
25x2000 25 2000 245 4 330 18.5
2500 mm 3 Roll Plate Bending Machine
Model Max rolling thickness (mm) Max rolling width (mm) Yield strength of sheet metal (MPa) Rolling speed (m/min) Diameter of upper roller (mm) Power of the main motor (kw)
8x2500 8 2500 245 4.5 240 7.5
12x2500 12 2500 245 4.5 260 11
16x2500 16 2500 245 4 280 15
20x2500 20 2500 245 4 340 18.5
25x2500 25 2500 245 4 370 22
30x2500 30 2500 245 4 420 30
3000 mm 3 Roll Plate Bending Machine
Model Max rolling thickness (mm) Max rolling width (mm) Yield strength of sheet metal (MPa) Rolling speed (m/min) Diameter of upper roller (mm) Power of the main motor (kw)
12x3000 12 3000 245 4 280 11
30x3000 30 3000 245 4 450 37
3200 mm 3 Roll Plate Bending Machine
Model Max rolling thickness (mm) Max rolling width (mm) Yield strength of sheet metal (MPa) Rolling speed (m/min) Diameter of upper roller (mm) Power of the main motor (kw)
6x3200 6 3200 245 4.5 220 7.5
16x3200 16 3200 245 4 340 18.5

Features of standard symmetrical plate bending machines
• High tensile carbon rolls are employed for the bending machine
• This plate bending equipment features 2 driving rolls
• Emergency stop mechanism is available
• A control console supports an intelligent control process
• Steel welded frame structure without stress
• Highly wear-resistant Zinc-based alloy worm gears
• High torque motors and reduction gears
• Limit switches are adopted

Features of optional metal bending equipment
• Cone-rolling attachment
• Channel steel, angle iron, and tube rolling are employed
• Movable operation panel
• Polished chrome rolls
