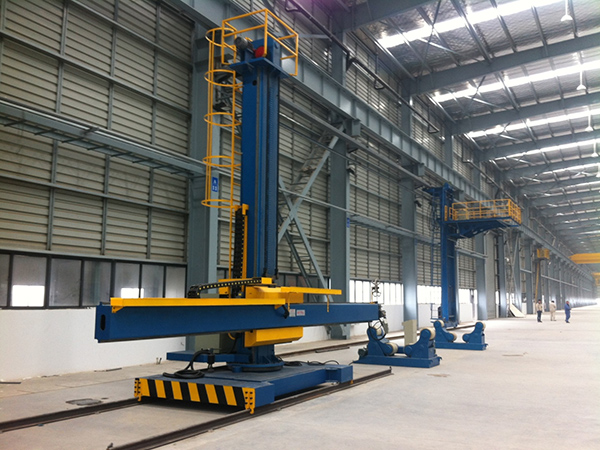

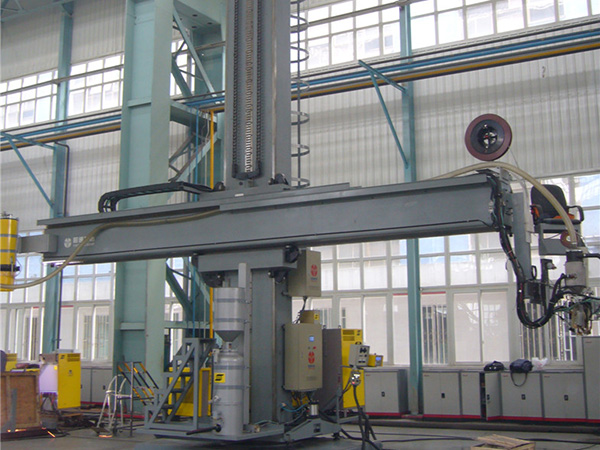

Column and Boom Welding Manipulator

Column and Boom Welding Manipulator
  • Column and Boom Welding Manipulator
  • Column and Boom Welding Manipulator
  • Column and Boom Welding Manipulator

    • Column and Boom Welding Manipulator

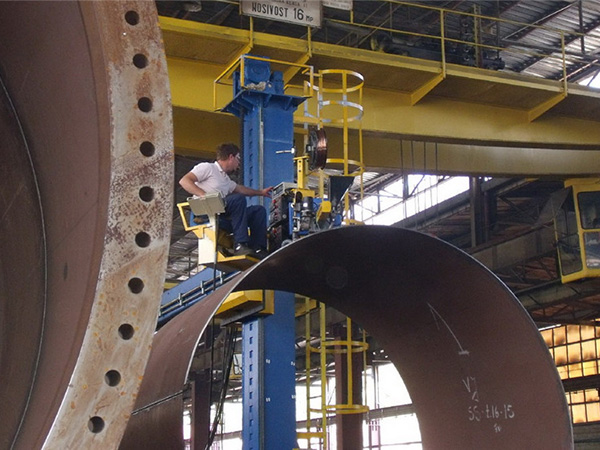

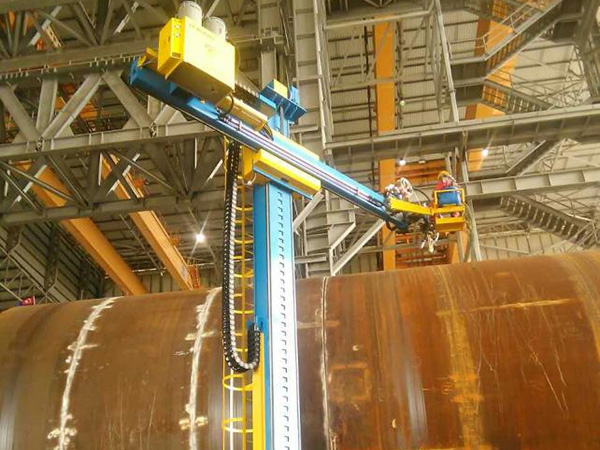

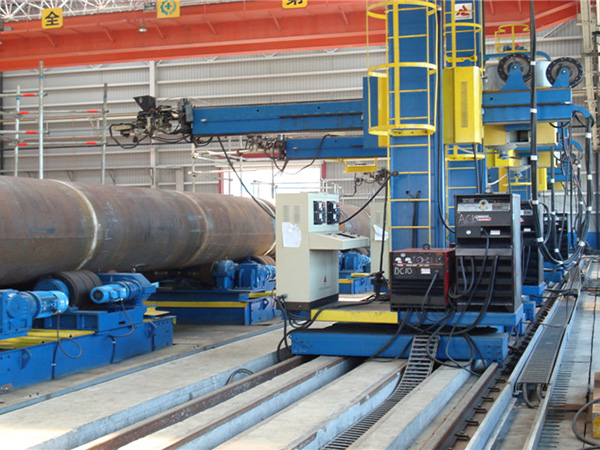

    Our automatic welding machines are designed for various welding tasks, perfect for working with metal containers and structures. They are widely used in many important industries, such as wind power, pressure vessel manufacturing, petrochemicals, pipeline construction, steel frameworks, boilers, shipbuilding, and even specialized repair jobs. One key feature of this welding equipment is their ability to precisely weld the tank shell and head cover, making it especially efficient in overlay welding on tank shell with longitudinal seam and circumferential seam for extra strength.

    Request a Quote
    Applications

    The automatic welding machinery manufactured by Chaoli are used across various sectors, enhancing the production and maintenance processes for wind turbine components, pressure vessels, transportation pipelines, and steel frameworks. Choosing our welding equipment signifies a step forward in achieving operational excellence, structural resilience, and adherence to rigorous safety standards.

    Welding Techniques

    Our welding equipment is adaptable to various welding techniques, such as TIG, MIG/MAG, PAW, and SAW methods. This versatility ensures that regardless of the specific requirements of your project, our welding machines can deliver high-quality welds.

    Applicable Materials
    • The submerged arc welding (SAW) welding technique is suitable for materials that are 6mm thick or more, commonly used with carbon steel and also capable of welding stainless steel.
    • Gas metal arc welding (GMAW), or MIG/MAG welding, are suitable for materials with a thickness of 3mm or more, including carbon steel, stainless steel, and aluminum plates.
    Specifications
    Type Heavy-duty Middle-duty Light-duty
    8×6 5×6 4×5 3.5×5 4×5 2x2
    Effective vertical stroke (mm) 8000 5000 4000 3500 3000 2000
    Effective horizontal stroke (mm) 6000 6000 5000 5000 4000 2000
    Suitable diameter of cylinder (mm) 1000-8000 1000-5000 1000-4000 700-3500 700-3000 500-2000
    Column rotating angle ±180° ±180° ±180° ±180 ±180° ±180°(manual)
    Boom elevation speed (m/min) 0.9 1 1 1 1 0.3
    Expansion speed of boom (m/min) 0.12-1.2 0.12-1.2 0.12-1.2 0.12-1.2 0.12-1.2 0.12-1.2
    Trolley travel speed (m/min) 1.5 1.5 1.5 1.5 1.5 1.5
    Center distance of trolley track (mm) 2308 1780 1780 1780 1500 900
