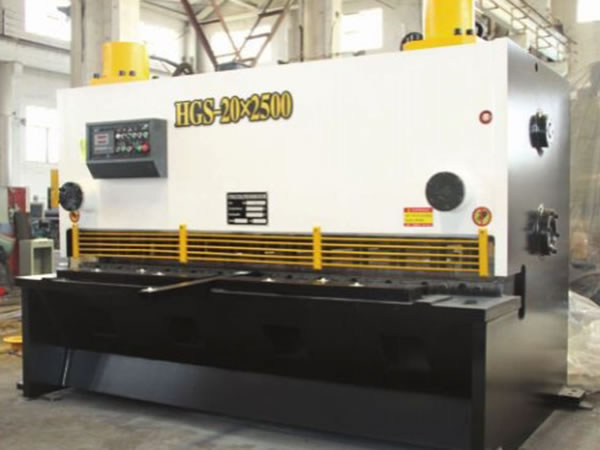

The hydraulic swing beam shear is designed with a fully-welded steel structure and a hydraulic transmission system. A vibration device is set to eliminate stress of the plate. These factors have enabled the plate shearing machine to show good performance in strength and rigidity. The hydraulic swing beam shear adopts a main hydraulic cylinder (fixed on wall plate) to perform downward shearing with nitrogen cylinder for returning, so the hydraulic system is simplified and runs more stably. During shearing, the upper tool rest of the shear swings around a fixed axis and the lever action is adopted to reduce stress on pivot, so life of the cutting edge and the swing beam shearing machine is considerably extended. The machine structure is compact and the stroke of upper tool rest can be step-less adjusted so as to increase the working efficiency.

Technical parameters of the hydraulic sheering machine
2000mm Sheet Metal Shearing Machine
Model Shearing thickness (mm) Shearing width (mm) Strokes (in one min) Backgauge range (mm) Shearing angle Motor power (kw)
QC12Y(K)-10×2000 10 2000 6-7 20-600 1"45' 11
QC12Y(K)-12×2000 12 2000 6-8 20-800 2" 15
QC12Y(K)-20×2000 20 2000 6-8 20-800 2"30' 22
QC12Y(K)-25×2000 25 2000 4-6 20-800 3" 30
2500mm Sheet Metal Shearing Machine
Model Shearing thickness (mm) Shearing width (mm) Strokes (in one min) Backgauge range (mm) Shearing angle Motor power (kw)
QC12Y(K)-4×2500 4 2500 10-16 20-600 1"30' 4
QC12Y(K)-6×2500 6 2500 10-12 20-600 1"30' 7.5
QC12Y(K)-8×2500 8 2500 10-12 20-600 1"30' 7.5
QC12Y(K)-10×2500 10 2500 6-8 20-600 1"45' 11
QC12Y(K)-12×2500 12 2500 6-8 20-800 2" 15
QC12Y(K)-16×2500 16 2500 6-8 20-800 2" 18.5
QC12Y(K)-20×2500 20 2500 4-6 20-800 2"30' 22
QC12Y(K)-25×2500 25 2500 4-6 20-800 3" 30
QC12Y(K)-30×2500 30 2500 4-6 20-800 3"30' 37
QC12Y(K)-40×2500 40 2500 3-5 30-800 4" 55
3000mm Sheet Metal Shearing Machine
Model Shearing thickness (mm) Shearing width (mm) Strokes (in one min) Backgauge range (mm) Shearing angle Motor power (kw)
QC12Y(K)-50×3000 50 3000 3-5 4"30' 90×3
3200mm Sheet Metal Shearing Machine
Model Shearing thickness (mm) Shearing width (mm) Strokes (in one min) Backgauge range (mm) Shearing angle Motor power (kw)
QC12Y(K)-4×3200 4 3200 17-14 20-600 1"30' 5.5
QC12Y(K)-6×3200 6 3200 10-12 20-600 1"30' 7.5
QC12Y(K)-8×3200 8 3200 8-10 20-600 1"30' 7.5
QC12Y(K)-10×3200 10 3200 6-8 20-600 1"45' 11
QC12Y(K)-12×3200 12 3200 6-8 20-800 2" 15
QC12Y(K)-16×3200 16 3200 5-7 20-800 2" 18.5
QC12Y(K)-20×3200 20 3200 4-6 20-800 2"30' 30
QC12Y(K)-25×3200 25 3200 4-6 20-800 3" 37
QC12Y(K)-30×3200 30 3200 3-5 20-800 3"30' 45
QC12Y(K)-40×3200 40 3200 3-5 20-800 4" 55
3500mm Sheet Metal Shearing Machine
Model Shearing thickness (mm) Shearing width (mm) Strokes (in one min) Backgauge range (mm) Shearing angle Motor power (kw)
QC12Y(K)-60×3500 60 3500 3-5 5" 90×4
4000mm Sheet Metal Shearing Machine
Model Shearing thickness (mm) Shearing width (mm) Strokes (in one min) Backgauge range (mm) Shearing angle Motor power (kw)
QC12Y(K)-4×4000 4 4000 8-10 20-600 1"30' 5.5
QC12Y(K)-6×4000 6 4000 8-10 20-600 1"30' 7.5
QC12Y(K)-8×4000 8 4000 6-8 20-600 1"30' 11
QC12Y(K)-10×4000 10 4000 6-8 20-600 1"45' 15
QC12Y(K)-12×4000 12 4000 6-8 20-800 2" 18.5
QC12Y(K)-16×4000 16 4000 3-5 20-800 2" 18.5
QC12Y(K)-20×4000 20 4000 4-6 20-800 2"30' 30
5000mm Sheet Metal Shearing Machine
Model Shearing thickness (mm) Shearing width (mm) Strokes (in one min) Backgauge range (mm) Shearing angle Motor power (kw)
QC12Y(K)-4×5000 4 5000 7-9 20-600 1"30' 5.5
QC12Y(K)-6×5000 6 5000 7-9 20-600 1"30' 7.5
QC12Y(K)-8×5000 8 5000 5-7 20-800 1"30' 15
QC12Y(K)-12×5000 12 5000 5-7 20-800 2" 22
6000mm Sheet Metal Shearing Machine
Model Shearing thickness (mm) Shearing width (mm) Strokes (in one min) Backgauge range (mm) Shearing angle Motor power (kw)
QC12Y(K)-4×6000 4 6000 5-7 20-800 1"30' 7.5
QC12Y(K)-6×6000 6 6000 6-7 20-800 1"30' 7.5
QC12Y(K)-8×6000 8 6000 4-6 20-800 1"30' 15
QC12Y(K)-12×6000 12 6000 4-6 20-800 2" 22
QC12Y(K)-50×6000 50 6000 3-5 4"30' 90×5
8000mm Sheet Metal Shearing Machine
Model Shearing thickness (mm) Shearing width (mm) Strokes (in one min) Backgauge range (mm) Shearing angle Motor power (kw)
QC12Y(K)-8×8000 8 8000 3-5 20-800 1"30' 15
QC12Y(K)-12×8000 12 8000 3-5 20-800 2" 22
