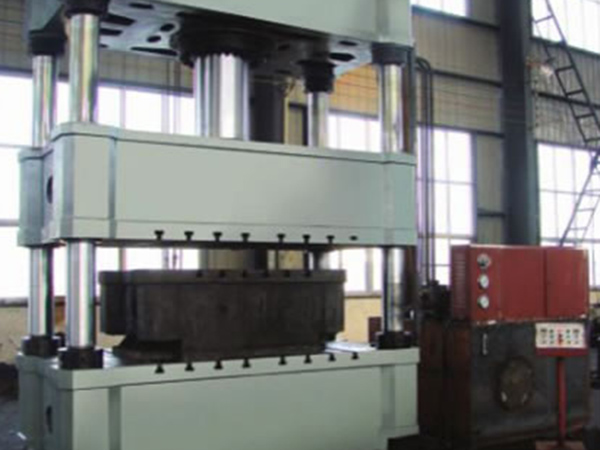

Hydraulic Press

Hydrostatic press is a machine utilizing liquid as the actuating medium to transfer energy and to realize a specific process. Apart from plate forging, hydraulic press is also used for straightening, mounting, briquetting, plate pressing, plate bending, and plate straightening, etc. Chaoli hydrostatic presses are classified into water press and oil press: machines utilizing water fluid as the actuating medium are called water presses and machines adopting oil to be the actuating medium are oil presses. The type of hydrostatic press is commonly indicated by nominal working force (kN) or nominal tonnage (T). Water press is generally used for plate forging due to its large tonnage.

The structure of the hydraulic press shall be more compact with less rolls, bigger roll diameter and larger power (width unchanged) for processing thicker sheet, vise versa. Carrier rolls (pulleys) are arranged outside of the upper and lower working rolls to form a roller group structure. This 4-column hydraulic press is generally consisted of a driving part, a motor and an electric control unit.

Technical parameters of the hydraulic press
400kN Hydraulic Press
Model YJZ32-40
Nominal pressure (kN) 400
Ejector force (kN) 12
Max hydraulic pressure (MPa) 25
Max sliding stroke (mm) 400
Max stroke of the ejection piston (mm) 150
Opening height (mm) 600
Sliding speed of the slider moving downward with no load (mm/s) 100
working (mm/s) 10
returning (mm/s) 52
Effective dimension of the working table length (mm) 500
width (mm) 460
Overall dimensions of the machine length (mm) 1800
width (mm) 1200
height (mm) 2600
Motor power (kw) 4
630kN Hydraulic Press
Model YJZ32-63
Nominal pressure (kN) 630
Ejector force (kN) 190
Max hydraulic pressure (MPa) 25
Max sliding stroke (mm) 500
Max stroke of the ejection piston (mm) 160
Opening height (mm) 700
Sliding speed of the slider moving downward with no load (mm/s) 100
working (mm/s) 25
returning (mm/s) 80
Effective dimension of the working table length (mm) 560
width (mm) 500
Overall dimensions of the machine length (mm) 2400
width (mm) 1400
height (mm) 3100
Motor power (kw) 7.5
1000kN Hydraulic Press
Model YJZ32-100 YJZ32-100E
Nominal pressure (kN) 1000 1000
Ejector force (kN) 190 400
Max hydraulic pressure (MPa) 25 25
Max sliding stroke (mm) 600 600
Max stroke of the ejection piston (mm) 200 200
Opening height (mm) 900 900
Sliding speed of the slider moving downward with no load (mm/s) 100 120
working (mm/s) 10 16
returning (mm/s) 50 80
Effective dimension of the working table length (mm) 720 750
width (mm) 580 640
Overall dimensions of the machine length (mm) 2500 2700
width (mm) 1500 1700
height (mm) 3150 3400
Motor power (kw) 7.5 11
1600kN Hydraulic Press
Model YJZ32-160C
Nominal pressure (kN) 1600
Ejector force (kN) 400
Max hydraulic pressure (MPa) 25
Max sliding stroke (mm) 700
Max stroke of the ejection piston (mm) 250
Opening height (mm) 1000
Sliding speed of the slider moving downward with no load (mm/s) 120
working (mm/s) 10
returning (mm/s) 50
Effective dimension of the working table length (mm) 1000
width (mm) 800
Overall dimensions of the machine length (mm) 2700
width (mm) 1700
height (mm) 3400
Motor power (kw) 11
2000kN Hydraulic Press
Model YJZ32-200A
Nominal pressure (kN) 2000
Ejector force (kN) 4000
Max hydraulic pressure (MPa) 25
Max sliding stroke (mm) 700
Max stroke of the ejection piston (mm) 250
Opening height (mm) 1100
Sliding speed of the slider moving downward with no load (mm/s) 100
working (mm/s) 12
returning (mm/s) 80
Effective dimension of the working table length (mm) 1000
width (mm) 900
Overall dimensions of the machine length (mm) 2825
width (mm) 1500
height (mm) 3725
Motor power (kw) 15
3150kN Hydraulic Press
Model YJZ32-315A
Nominal pressure (kN) 3150
Ejector force (kN) 630
Max hydraulic pressure (MPa) 25
Max sliding stroke (mm) 800
Max stroke of the ejection piston (mm) 300
Opening height (mm) 1200
Sliding speed of the slider moving downward with no load (mm/s) 100
working (mm/s) 12
returning (mm/s) 60
Effective dimension of the working table length (mm) 1250
width (mm) 1200
Overall dimensions of the machine length (mm) 3235
width (mm) 1500
height (mm) 4295
Motor power (kw) 18.5
4000kN Hydraulic Press
Model YJZ32-400
Nominal pressure (kN) 4000
Ejector force (kN) 630
Max hydraulic pressure (MPa) 25
Max sliding stroke (mm) 800
Max stroke of the ejection piston (mm) 300
Opening height (mm) 1300
Sliding speed of the slider moving downward with no load (mm/s) 100
working (mm/s) 12
returning (mm/s) 45
Effective dimension of the working table length (mm) 1250
width (mm) 1200
Overall dimensions of the machine length (mm) 3235
width (mm) 1500
height (mm) 4500
Motor power (kw) 22
5000kN Hydraulic Press
Model YJZ32-500B YJZ32-500C
Nominal pressure (kN) 5000 5000
Ejector force (kN) 1000 1000
Max hydraulic pressure (MPa) 25 25
Max sliding stroke (mm) 900 900
Max stroke of the ejection piston (mm) 350 350
Opening height (mm) 1500 1500
Sliding speed of the slider moving downward with no load (mm/s) 100 100
working (mm/s) 12 12
returning (mm/s) 80 80
Effective dimension of the working table length (mm) 1400 2200
width (mm) 1400 1400
Overall dimensions of the machine length (mm) 4060 6500
width (mm) 1800 1800
height (mm) 4995 4740
Motor power (kw) 37 37
6300kN Hydraulic Press
Model YJZ32-630
Nominal pressure (kN) 6300
Ejector force (kN) 1000
Max hydraulic pressure (MPa) 25
Max sliding stroke (mm) 900
Max stroke of the ejection piston (mm) 350
Opening height (mm) 1500
Sliding speed of the slider moving downward with no load (mm/s) 100
working (mm/s) 12
returning (mm/s) 50
Effective dimension of the working table length (mm) 1500
width (mm) 1500
Overall dimensions of the machine length (mm) 4200
width (mm) 2000
height (mm) 5600
Motor power (kw) 45
8000kN Hydraulic Press
Model YJZ32-800
Nominal pressure (kN) 8000
Ejector force (kN) 1600
Max hydraulic pressure (MPa) 25
Max sliding stroke (mm) 900
Max stroke of the ejection piston (mm) 450
Opening height (mm) 1600
Sliding speed of the slider moving downward with no load (mm/s) 100
working (mm/s) 8
returning (mm/s) 50
Effective dimension of the working table length (mm) 1800
width (mm) 1600
Dimension of the machine length (mm) 4800
width (mm) 4000
height (mm) 6000
Motor power (kw) 45
10000kN Hydraulic Press
Model YJZ32-1000
Nominal pressure (kN) 10000
Ejector force (kN) 1600
Max hydraulic pressure (MPa) 25
Max sliding stroke (mm) 900
Max stroke of the ejection piston (mm) 450
Opening height (mm) 1600
Sliding speed of the slider moving downward with no load (mm/s) 80
working (mm/s) 10
returning (mm/s) 50
Effective dimension of the working table length (mm) 2000
width (mm) 1800
Dimension of the machine length (mm) 5200
width (mm) 4300
height (mm) 6450
Motor power (kw) 60
12500kN Hydraulic Press
Model YJZ32-1250
Nominal pressure (kN) 12500
Ejector force (kN) 2000
Max hydraulic pressure (MPa) 25
Max sliding stroke (mm) 900
Max stroke of the ejection piston (mm) 450
Opening height (mm) 1600
Sliding speed of the slider moving downward with no load (mm/s) 80
working (mm/s) 8
returning (mm/s) 50
Effective dimension of the working table length (mm) 2000
width (mm) 1800
Dimension of the machine length (mm) 5200
width (mm) 4300
height (mm) 6450
Motor power (kw) 60
16000kN Hydraulic Press
Model YJZ32-1600
Nominal pressure (kN) 16000
Ejector force (kN) 2000
Max hydraulic pressure (MPa) 25
Max sliding stroke (mm) 1000
Max stroke of the ejection piston (mm) 300
Opening height (mm) 1800
Sliding speed of the slider moving downward with no load (mm/s) 100
working (mm/s) 10
returning (mm/s) 80
Effective dimension of the working table length (mm) 2400
width (mm) 2000
Dimension of the machine length (mm) 6500
width (mm) 4500
height (mm) 6500
Motor power (kw) ≈120
20000kN Hydraulic Press
Model YJZ32-2000
Nominal pressure (kN) 20000
Ejector force (kN) 2000
Max hydraulic pressure (MPa) 25
Max sliding stroke (mm) 1200
Max stroke of the ejection piston (mm) 300
Opening height (mm) 2000
Sliding speed of the slider moving downward with no load (mm/s) 100
working (mm/s) 10
returning (mm/s) 70
Effective dimension of the working table length (mm) 2500
width (mm) 2000
Dimension of the machine length (mm) 6500
width (mm) 4500
height (mm) 6800
Motor power (kw) ≈145
25000kN Hydraulic Press
Model YJZ32-2500
Nominal pressure (kN) 25000
Ejector force (kN) 2500
Max hydraulic pressure (MPa) 25
Max sliding stroke (mm) 900
Max stroke of the ejection piston (mm) 450
Opening height (mm) 1800
Sliding speed of the slider moving downward with no load (mm/s) 100
working (mm/s) 10
returning (mm/s) 60
Effective dimension of the working table length (mm) 2500
width (mm) 2380
Dimension of the machine length (mm) 6600
width (mm) 4500
height (mm) 8450
Motor power (kw) ≈145
30000kN Hydraulic Press
Model YJZ32-3000
Nominal pressure (kN) 30000
Ejector force (kN) 2500
Max hydraulic pressure (MPa) 25
Max sliding stroke (mm) 1200
Max stroke of the ejection piston (mm) 450
Opening height (mm) 1800
Sliding speed of the slider moving downward with no load (mm/s) 120
working (mm/s) 10
returning (mm/s) 80
Effective dimension of the working table length (mm) 4000
width (mm) 2500
Dimension of the machine length (mm) 9000
width (mm) 4600
height (mm) 10000
Motor power (kw) ≈180
35000kN Hydraulic Press
Model YJZ32-3500
Nominal pressure (kN) 35000
Ejector force (kN) 3150
Max hydraulic pressure (MPa) 25
Max sliding stroke (mm) 1200
Max stroke of the ejection piston (mm) 450
Opening height (mm) 2500
Sliding speed of the slider moving downward with no load (mm/s) 120
working (mm/s) 10
returning (mm/s) 100
Effective dimension of the working table length (mm) 4000
width (mm) 1500
Dimension of the machine length (mm) 8000
width (mm) 2500
height (mm) 11000
Motor power (kw) ≈250
40000kN Hydraulic Press
Model YJZ32-4000
Nominal pressure (kN) 40000
Ejector force (kN) 4000
Max hydraulic pressure (MPa) 25
Max sliding stroke (mm) 900
Max stroke of the ejection piston (mm) 360
Opening height (mm) 1500
Sliding speed of the slider moving downward with no load (mm/s) 100
working (mm/s) 8
returning (mm/s) 60
Effective dimension of the working table length (mm) 5000
width (mm) 1600
Dimension of the machine length (mm) 12100
width (mm) 3700
height (mm) 7650
Motor power (kw) ≈350
50000kN Hydraulic Press
Model YJZ32-5000
Nominal pressure (kN) 50000
Ejector force (kN) 8000
Max hydraulic pressure (MPa) 25
Max sliding stroke (mm) 900
Max stroke of the ejection piston (mm) 350
Opening height (mm) 1500
Sliding speed of the slider moving downward with no load (mm/s) 100
working (mm/s) 8
returning (mm/s) 80
Effective dimension of the working table length (mm) 5000
width (mm) 1600
Dimension of the machine length (mm) 12100
width (mm) 3700
height (mm) 7850
Motor power (kw) ≈450
